GPV0005-0010(GPV5016-5021) 1500Vdc Size 2
Class of Operation: gPV
Rating:
Amps: 150-400A
Volts: 1500Vdc
Interrupting Rating: 50kA@1500Vdc
Standards/Approvals for Reference:
2 Designed to UL248-19/IEC60269-6/GB/T13539-6;
2 REACH declaration available upon request;
2 CE;
2 RoHS compliant.
Description: A range of square body PV fuses specifically designed for protecting and isolating photovoltaic array combiners and disconnects, are applied in recombiner boxes and inverters

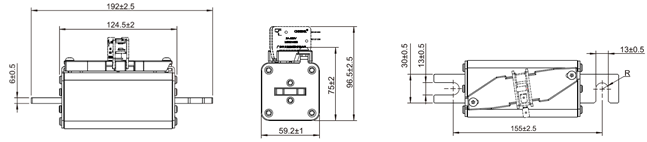

Cross-section: size 2 (59x59mm)
DIN 43 653, GPV0005-0010
US Style, GPV5016-5021
Catalogue Numbers
Items | Catalogue Numbers | Electrical Characteristics | Standard recommended bolts | Installation torque | UL listed model | ||||||
DIN 43 653 | US Style | Rated Current RMS-Amps | I2t (A2Sec) | Watts Loss | |||||||
Pre-arc | Clearing at 1500V | DIN 43 653 | US Style | ||||||||
1 | GPV005 | GPV5016 | 160 | 29040 | 61213 | 47.9 | M12 | M10 | 42±4.0(N.m) | GPVLFFE-160H | |
2 | GPV006 | GPV5017 | 200 | 47413 | 102381 | 59.4 | M12 | M10 | 42±4.0(N.m) | GPVLFFE-200H | |
3 | GPV007 | GPV5018 | 250 | 86134 | 190416 | 63.2 | M12 | M10 | 42±4.0(N.m) | GPVLFFE-250H | |
4 | GPV008 | GPV5019 | 315 | 165725 | 374888 | 80.4 | M12 | M10 | 42±4.0(N.m) | GPVLFFE-315H | |
5 | GPV009 | GPV5020 | 350 | 233126 | 539343 | 83.9 | M12 | M10 | 42±4.0(N.m) | GPVLFFE-350H | |
6 | GPV010 | GPV5021 | 400 | 312000 | 737861 | 95.0 | M12 | M10 | 42±4.0(N.m) | GPVLFFE-400H | |
